DC Brushless Motor Controller
BLPS-6030
The Pekew Model BLPS-6030 Motor Speed Controller is programmable BLDC motor controller. It allows users to set parameters, conduct tests, and obtain diagnostic information quickly and easily. Optimized for use on light duty Class III pallet trucks and sweeper scrubber floorcare machines. Highly flexible programmability allows them to be applied on any low power BLDC motor application.
Specification
- Motor Type: Brushless DC (BLDC)
- Application/Function: E-bike / Traction / Pump
- Nominal Voltage Range(VDC) :24V / 36V /
48V - Maximum Current: 30A
- Control Method: Square Wave

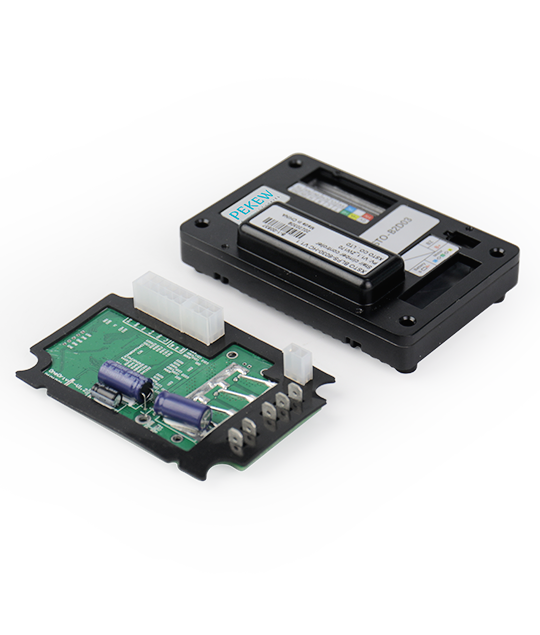

Sinusoidal Wave Brushless Motor Controller BLPS-6030F
The Pekew Model BLPS-6030F is Motor Speed Controllers provide efficient, optimal control of Brushless DC drive motors for battery powered vehicles. Optimized for use on light duty Class III pallet trucks and sweeper scrubber floorcare machines. Highly flexible programmability allows them to be applied on any low power BLDC motor application.
Specification
- Motor Type: Brushless DC (BLDC)
- Application/Function: E-bike / Traction / Pump
- Nominal Voltage Range(VDC) :24V / 36V / 48V
- Maximum Current: 50A
- Control Mehod: FOC
BLP4-6030
The Pekew Model BLPS-6030F is a Motor Speed Controller that can drive 4 motors (2 brushed dc motors+2 brushless dc motors). It provides efficient, optimal control of permanent magnet drive motors for battery powered industrial vehicles, such as stair crawler and stair climbing wheelchair, etc..
Specification
- Motor Type: Brushless DC (BLDC)
- Application/Function: E-bike / Traction / Pump
- Nominal Voltage Range(VDC) :24V / 36V / 48V
- Maximum Brushed Motor Current: 30A
- Maximum Brushless Motor Current: 50A
- Control Method: Square Wave
Send An Inquiry to Pekew
For any questions or inquiries about Pekew brushless motor controllers, please feel free to contact us and tell us your needs as specific as possible, we ususally reply you in 12 hours.
