AC Induction Motor Controller
ACIM Controller
ACIM(Asynchronous Motor) Controller is

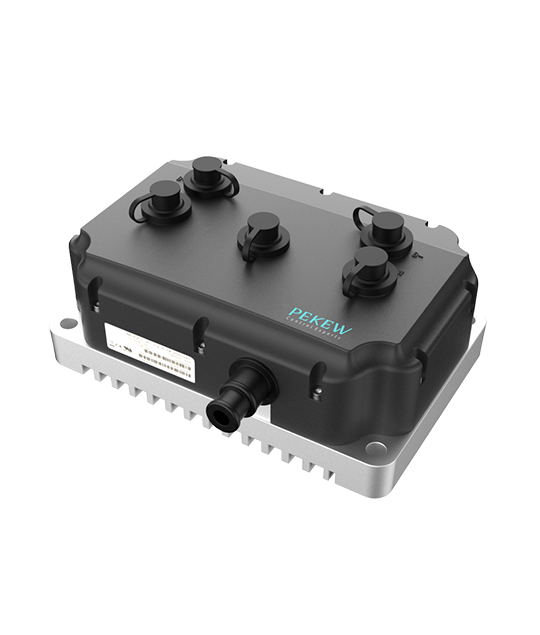

Pekew PE60300
The Pekew Model PE6030 AC asynchronous induction motor controller
Specification
- Model No: PE60300(48V)/PE60300(60V)
- Input DC Voltage: 30~60V/ 40~75V
- Maximum Output AC Current: 275A/275A
- Rated Output AC Current: 85V/85V
- Controller Start Voltage: DC35V/DC40V
- Rated Output Power: 3KW/3KW
- Maxmium Output Power: 12KW/13.5KW
- Motor Control Method: FOC (Field Oriented Control) With Speed Sensor
- Conmunication Mehod: CAN
- Controller Working Temp: -30℃ to 55℃
- Controller Storage Temperature: -40℃ to 70℃
- Max. Efficiency: 98%
- Support: Programmable by PC

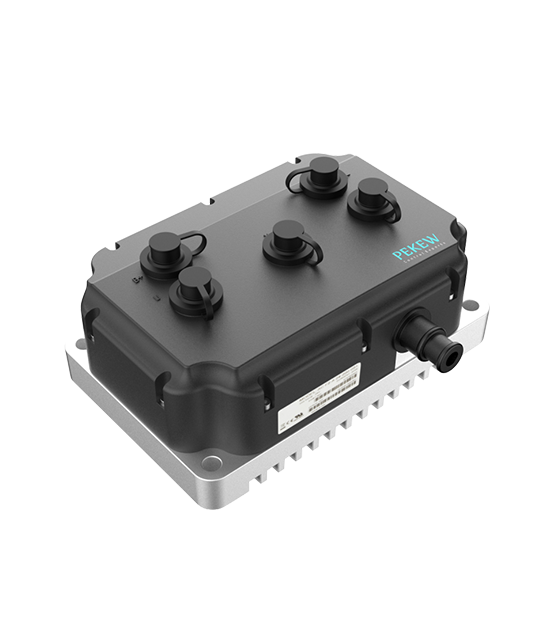

Pekew PE60350
The Pekew Model PE60350 asynchronous induction motor controller
Specification
- Model No: PE60350(48V) / PE60350(60V)
- Input Voltage Range:DC 30~60V/DC 40~75V
- Maximum Output Current: AC 350A/ AC 350A
- Rated Output Current:AC 120V/AC 120V
- Controller Start Voltage: DC40V/ DC40V
- Rated Output Power: 5KW/5KW
- Maxmium Output Power: 15KW/18KW
- Motor Control Method: FOC (Field Oriented Control) With Speed Sensor
- Conmunication Mehod: CAN
- Controller Working Temp: -30℃ to 55℃
- Controller Storage Temperature: -40℃ to 70℃
- Max. Efficiency: 98%
- Maximum Output Power: 12KW
- Support: Programmable by PC

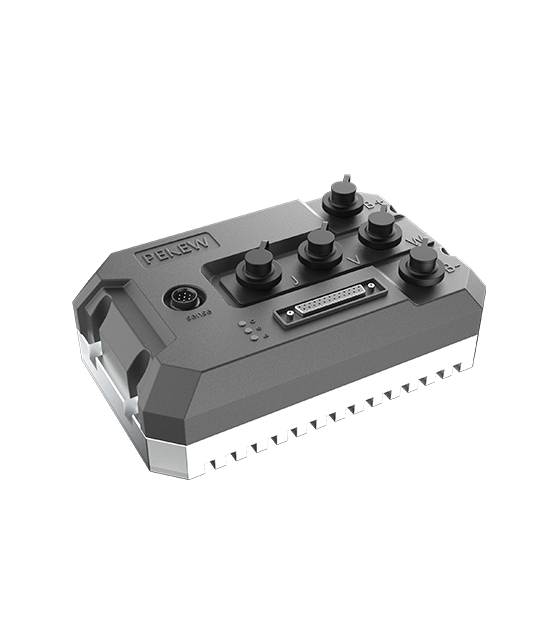

Pekew PE1232E-2121
The Pekew Model HY1232E-2121 asynchronous induction motor controller
Specification
- Input Voltage Range: DC 18~36V
- Maximum Output Voltage: AC 180A
- Rated Output Current: AC 90A
- Controller Start Voltage: DC 18V
- Rated Output Power: 3KW
- Maximum Output Power: 12KW
- Motor Control Method: FOC (Field Oriented Control) With Speed Sensor
- Communication Method: CAN, RS485
- Controller Working Temp: -30℃ to 55℃
- Controller Storage Temperature: -40℃ to 70℃
- Max. Efficiency: 98%
- Cooling Method: Self-cooling
- Support: Programmable by PC
Pekew PE1232E-5221
The Pekew Model PE1232E-5221 asynchronous induction motor controller
Specification
- Input Voltage Range: DC 36~48V
- Maximum Output Voltage: AC 275A
- Rated Output Current: AC 85A
- Controller Start Voltage: DC 35V
- Rated Output Power: 3KW
- Maximum Output Power: 12KW
- Motor Control Method: FOC (Field Oriented Control) With Speed Sensor
- Communication Method: CAN, RS485
- Controller Working Temp: -30℃ to 55℃
- Controller Storage Temperature: -40℃ to 70℃
- Max. Efficiency: 98%
- Cooling Method: Self-cooling
- Support: Programmable by PC
PMSM Controller
PMSM(Permanent-Magnet Synchronous Motor) Controller is
Pekew PMSM60550
The Pekew Model PMSM60550 permanent magnet synchronous motor controller adopts Field Oriented Control (FOC), the power drive stage adopts SVPWM modulation, and provides three-phase vector control sine wave current to the motor Output; the internal use of a new ARM core, 32-bit microprocessor as the main control chip, the system shows excellent computing power and task processing capabilities, can simultaneously deal with high real-time requirements such as torque loop, excitation loop, speed loop, etc; this kind of control method can realize the maximum torque control, constant power control, speed closed-loop control, and braking energy feedback control of the motor.
Specification
- Controller Design: AC PMSM
- Motor Control Method: FOC(Field Oriented Control）That Support Incremental Encoder and Resolver
- Input Voltage Range: DC 40V-75V
- Rated Output Power: 15KW
- Max Output Power: 120KW
- Rated Output Current: AC 250A
- Max Output Current: AC 550A
- Working Communication: CAN
- Controller Working Temp: -30℃ to 55℃
- Controller Storage Temperature: -40℃ to 70℃
- Max. Efficiency: 98%
- Support: Programmable by PC.
- Application: Electric Scooter, Motorcycle, Tricycle, Car, Four Wheelers, Golfcar, Sight Seeing Car etc.
